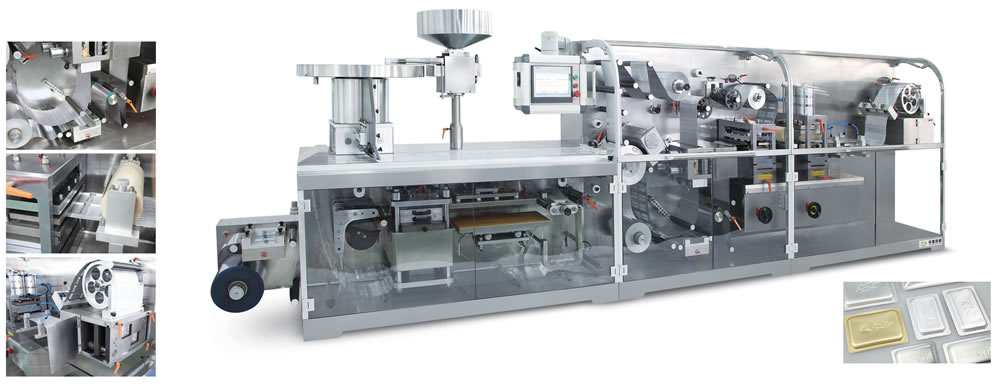

DPH-270DL High-speed Tropical Aluminum Blister Packing Machine

High-speed Tropical Aluminum Blister Packing Machine adds forming and sealing process of tropical aluminum on the basis of DPH-270D, in order to improve the way of sealing, moisture proof, and light avoiding, to raise the value of the product. It is suitable for packing all kinds of products in pharma, healthcare industries.

Main features

  1. Fast mould change, push oriented, without using tools.
  2. Adopt servo traction, simple to set up, convenient to debug.
  3. Push oriented punch way to install the mould. It’s no need to dismantle the suck nozzles if equipped with inspection and rejection system.
  4. Long distance between two heating plates of forming when the machine stops, to avoid PVC excessively heated and softened.
  5. Optional configurations include camera inspection and rejection device, mechanical hand structure with suck heads, automatic vibration guide rail feeder, etc.
  6. Can be equipped with servo motor and eye mark register device.

Data Sheet

ModelDPH-270DDPH-330DDPH-380D
Punch Frequency60-180times/min60-180times/min60-180times/min
Max. Forming area240×260mm240×320mm240×370mm
Max. Forming depth13mm13mm13mm
Traction strokePunch:20-120mm Forming:80-250mm
Blister specificationStandard:80×57、95×65、103×43(Customized allowed)
Packing materialCold ALU forming aluminum foil0.14-0.16×270mm0.14-0.16×330mm0.14-0.16×380mm
Standard PVC hard sheet0.15-0.5×270mm0.15-0.5×330mm0.15-0.5×380mm
Standard PTP Aluminum foil0.02-0.035×270mm0.02-0.035×330mm0.02-0.035×380mm
Average hole diameter of roll70-76mm70-76mm70-76mm
Air consumption≥0.3m3/h (Self-contained) pressure:0.6-0.8Mpa
Mould oolingtap water or recycle water 60L/h
Total power20KW21KW22KW
Main motor2.2KW3.0KW3.0KW
Overall dimension (L×W×H)4100×980×1750mm4100×980×1750mm4100×1030×1750mm
Weight3000Kg3300Kg3500Kg
Alu-PVC-Alu
