Project Description

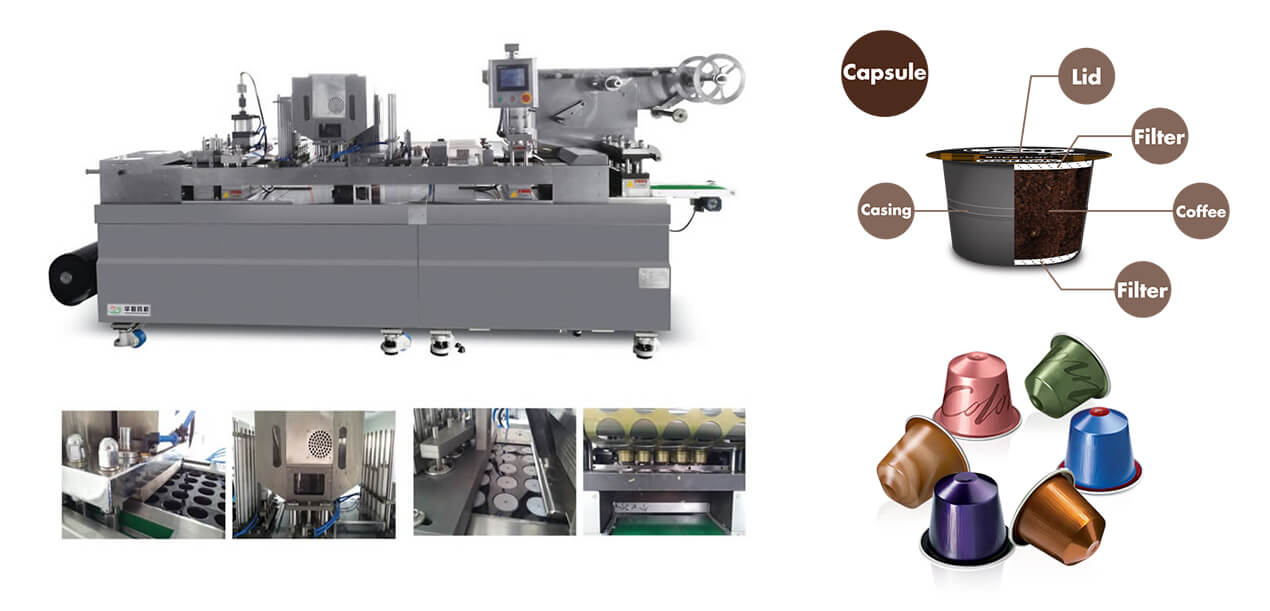

High-Speed Blister Packing Machine DPH

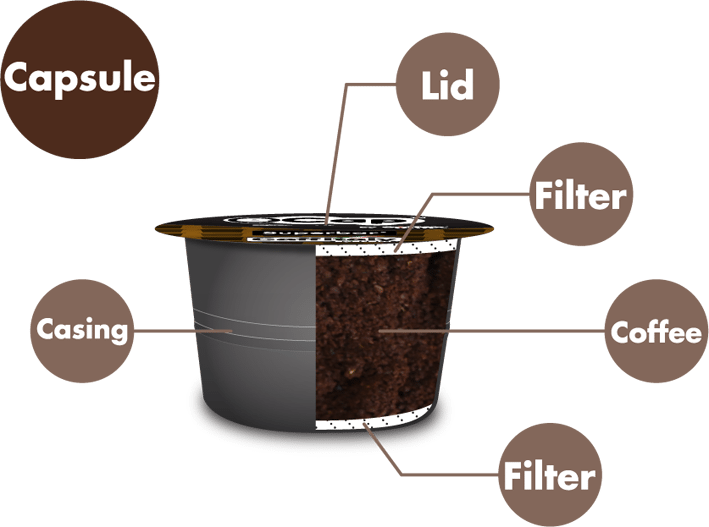

Automatic coffee capsule packing machine can make the coffee cup by heating the polypropylene sheet on and precise dragging it by the servo traction to the next station for feeding filter layer, filling coffee, powder, and feeding the second filter layer, sealing and punching. The final products will be outputted through conveyor belt.

Main features

  1. Automatic capsule cup forming device, without having to purchase capsules.
  2. The servo traction chain, canequip with photoelectric The servo filling coffee powder, accurate measurement.

Data Sheet

Punch Frequency7-15  times/min    About 5 / times
Production capacity3600 cups/h(By 5 / time, 12 times / min, the calculation)
Forming area250×110(mm2)( max )
Traction strokestandard 20-125mm
Coffee capsule shape(According to user requirements)
Packing materialPP hard film 0.45-0.9×250mm
Composite aluminum film 0.05-0.12×250mm
Reel aperture are 70-76mm
Heating PowerMolding up and down heating :  3KW Heat sealing :  1.5KW
Total power10 Kw
Air consumption>0.3m3/min  pressure:  0.6-0.8Mpa
Mould coolingTap water or recycle water  60L/h
Overall dimension4100×670×1650(L×W×H)
