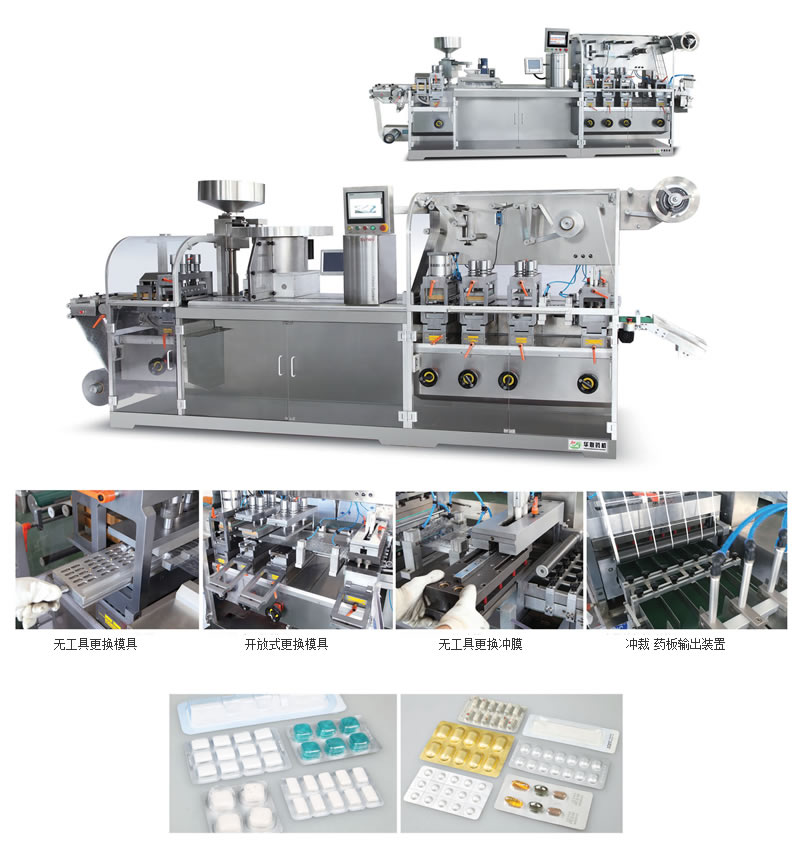

Cantilever style Flat-plate Blister Packing Machine DPB-270/360J
Forming mould, heat-sealing mould, batch number emboss printing mould and punching mould adopt drawer type mould change with national patent to achieve high effiiciency.
Application

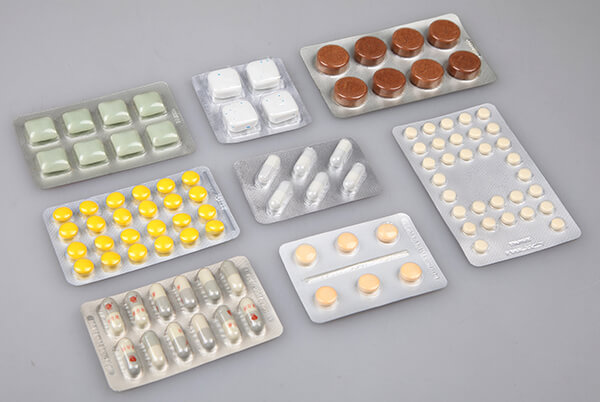

Cantilever style Flat-plate Blister Packing Machine is applied to alu pvc and alu alu packing of medicines, for example sealed blister packing of capsules and tablets of various specifications. Applied to sealed blister packing of various syringes, ampoule bottles and medical products.
Applied to sealed blister packing of food, electronic parts, hardware products, etc.
Technical characters
Main drive: Main motor located at the back of machine, easy for maintenance. Synchronous belt drive instead of chain belt drives to reduce oil stain. Guide rail installation method: Guide rail of the cabinet is installed in cantilever way. It is convenient for the operator to remove the dropped medicine.
Mould base installation and adjustment: Adopt lathe type guide rail and pinion-and-rack adjustment way. With position indicator and scale ruler for mould position adjustment.
All moulds including forming mould, heat-sealing mould, batch number emboss printing mould, punching mould can be orientation-guided pushed into its position by hand and mould handle rocked to finish mould change fastly with no need wrench or other tools.
Adopt air shaft to install PVC material and aluminium foil. Adopt PVC connection device to change roll material more fastly.
PVC loading adopt roller trace to avoid PVC material being over-stretched during material pulling.
Data Sheet
Model | DPB-270J | DPB-360J |
Punch Frequency | 10-70 times/min | 10-70 times/min |
Capacity | 9600-12000(Standard80*57) | 12000-15000(Standard80*57) |
Max forming area depth | Standard 140×260×12mm Can be customized to 160×260×26mm(Punching frequency <25times/min) | |
Stroke | 20-120(can be designed as user’s requirements) | |
Standard blister | 80*57(can be designed as user’s requirements) | |
Air Supply | 0.6Mpa-0.8Mpa; 0.3m3/min | |
Total Power | 380V/220V 50HZ 10KW | 380V/220V 50HZ 12KW |
Main Motor Power | 2.2KW | 2.2KW |
PVC hard sheet | 0.15-0.5X270 | 0.15-0.5×360mm |
PTP Alminum Foil | 0.02-0.035×270 | 0.02-0.35×360mm |
Cold Forming Aluminum Foil | 0.14-0.20×270 | 0.14-0.20×360mm |
Dialysis Paper | 50-100g/m x270 | 50-100g/m2×360mm |
Mould cooling | tap water or recycle water 60L/h | tap water or recycle water 60L/h |
Overall Dimension(LxWxH) | 4000x850x1700 | 4400×950×1750mm |
Weight | 2800kg | 3700kg |
